To Read or to Take Over? A Case Study of Safety Aware Reading Experience on Self-Driving Cars

This is the topic for my undergraduate research at NTHU. It was co-authored with my teammate Wei-Hsuan Hsu, adviced by Professor Shan-Hung Wu.

The Society of Automotive Engineers, defines the intelligence level and automation capabilities of vehicles, ranking through 0 to 5. At level 0, vehicles are fully controlled by human. At level 5, vehicles are fully automated and no human intervention is required. In between these two extremes, semi-autonomous vehicles come into the picture. These vehicles have a certain level of automation, yet the human drivers are required to stay vigilant at all times in case they need to take over the control of the car. This transition process is called handover.

In this research, we study the design of an in-car interactive system that allows users to read safely. Reading is a common activity people engage when commuting. However, a good reading experience seems to be a conflicting goal with safety, it keeps the driver's gaze off the road, which may jeopardize driver's ability to react to a handover event. We then ask the question: is it possible to design an in-car reading system such that it can deliver good reading experience and at the same time ensure driving safety.

An In-Car Reader

When handover occurs, a driver needs to 1) understand the current situation (e.g., looking at the road and searching for dangerous objects) and 2) perform physical movements (e.g. turning their head or putting their hands back on the steering wheel) in order to drive manually. Thus, we focus on in-car readers that 1) keeps the driver's gaze on the road and 2) keeps the driver's hand on the steering wheel.

With recent development of HUD (Heads Up Display) that allows text to be projected on a large portion of the windshield and keeps a driver's visual focus on the front, we propose using an HUD as the display of text. Furthermore, a modern car usually have control buttons on the steering wheel. We require the driver to interact with the HUD display through those buttons such that he/she will keep hands on the steering wheel when reading.

We propose 8 in-car reading methods following the above principles. These methods takes different approaches in 3 key design aspects:

(1) Should the reading zone be placed on the road or off road?

(2) Should the reading zone be displayed at a fixed position or a dynamic position changing according to road conditions?

(3) Should text in the reading zone be displayed paragraph by paragraph, sentence by sentence, or word by word?

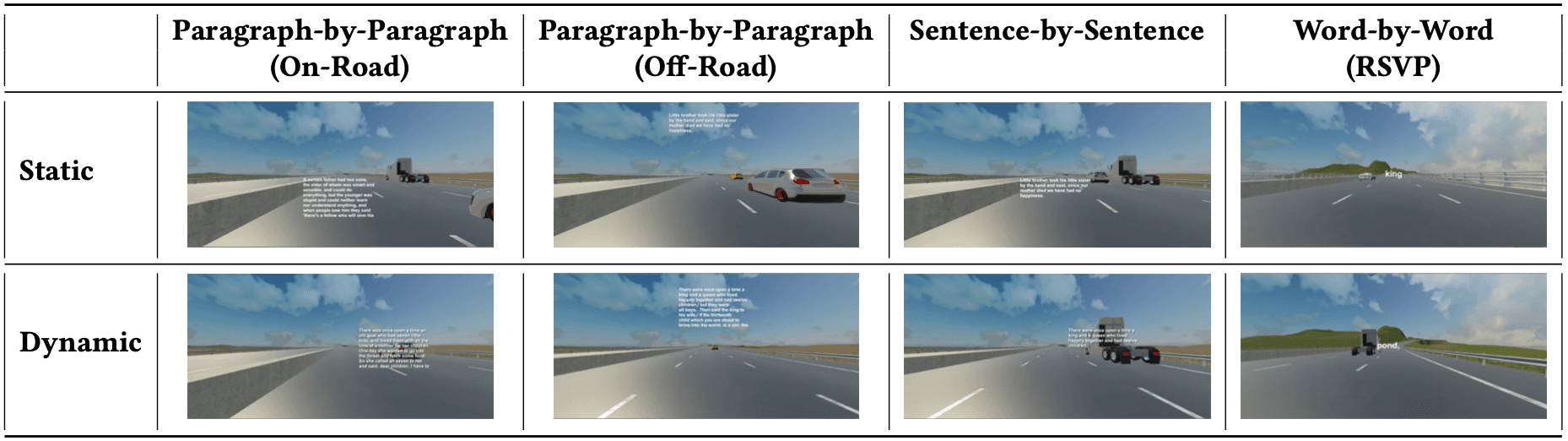

The following table gives a summary of the 8 different methods from the combinations of the three aforementioned design decisions:

Hypotheses

We have six hypothesis for our research:

Experiments

The experiment was conducted in a Unity3D environment. The vehicle can be controlled using a Logitech G29 Steering Wheel Set with pedals and clutch. PS4 style joystick buttons can be found on the steering wheel and is used to control text movements of the reader. The design is intended to keep the drivers' hands on the steering wheel even in automatic driving modes, this way the drivers can immediately gain control of the wheel upon Handover, hence reducing response time even further.

The Simulation Environment

The driving environment consisted of a three lane highway in a rural setting with no intersections. A steel beam bridge is included in the scene. Driver's car is driving at approximately 45 miles per hour. Traffic in the opposite lane is presented at a rate of about 1 per minute. A light traffic of non-player vehicles consisting Trucks and four-seat sedans can be seen.

The Reading Task

There are eight distinct reading passages for the eight sessions. Buttons on the steering wheel can be used to control the scrolling of the text. For the word-by-word displays, the participants pressed the same two buttons to adjust update speed. One press increases/decreases the speed by 10 wpm(words per minute). Attention to the reading passages was required as the participant were asked to answer reading comprehension questions at the end of each session.

Handover Scenarios

We have designed several different handover scenarios, all of them are implemented in the same highway terrain mentioned above. The scenarios involves different types of vehicles on different part of the highway. They are modeled in such a way that they resembles those accidents that do occur in real-world roads.

The Flow

In our design, there are a total of eight different reading methods that we aim to evaluate. We examine each of those representations with a simulation session. Thus, the participants will experience a total of eight handover situations along with eight kinds of reading methods.

Ordering of these eight sessions are purely random to avoid performance gain through increasing in mastery of the system. Each session starts in the auto-driving mode with the reading content displayed on the windshield. The auto-driving mode lasted for roughly 1 minute, and a handover scenario would occurred. The screen would flash red with the text "Handover!!" on the center of the screen (see figure 1), and the steering wheel generates haptic feedback to alert the driver to take over the control of the vehicle.

On the position of the incident in the handover scenario, an arrow would appear (see figure 2). The arrow was randomly generated from the four directions of up, down, left and right. The participants had to press the corresponding button on the steering wheel as soon as they identified the location of the incident. This design helps us record the time each participants requires to locate and identify the incident. Once they successfully pressed the right button, the handover process was completed, and the auto-pilot mode was disabled. Only then can the participants regain control of the vehicle. They needed to brake or to accurately steer the wheel to avoid crashing into the accident. The process is repeated for eight times for each of the reading methods.

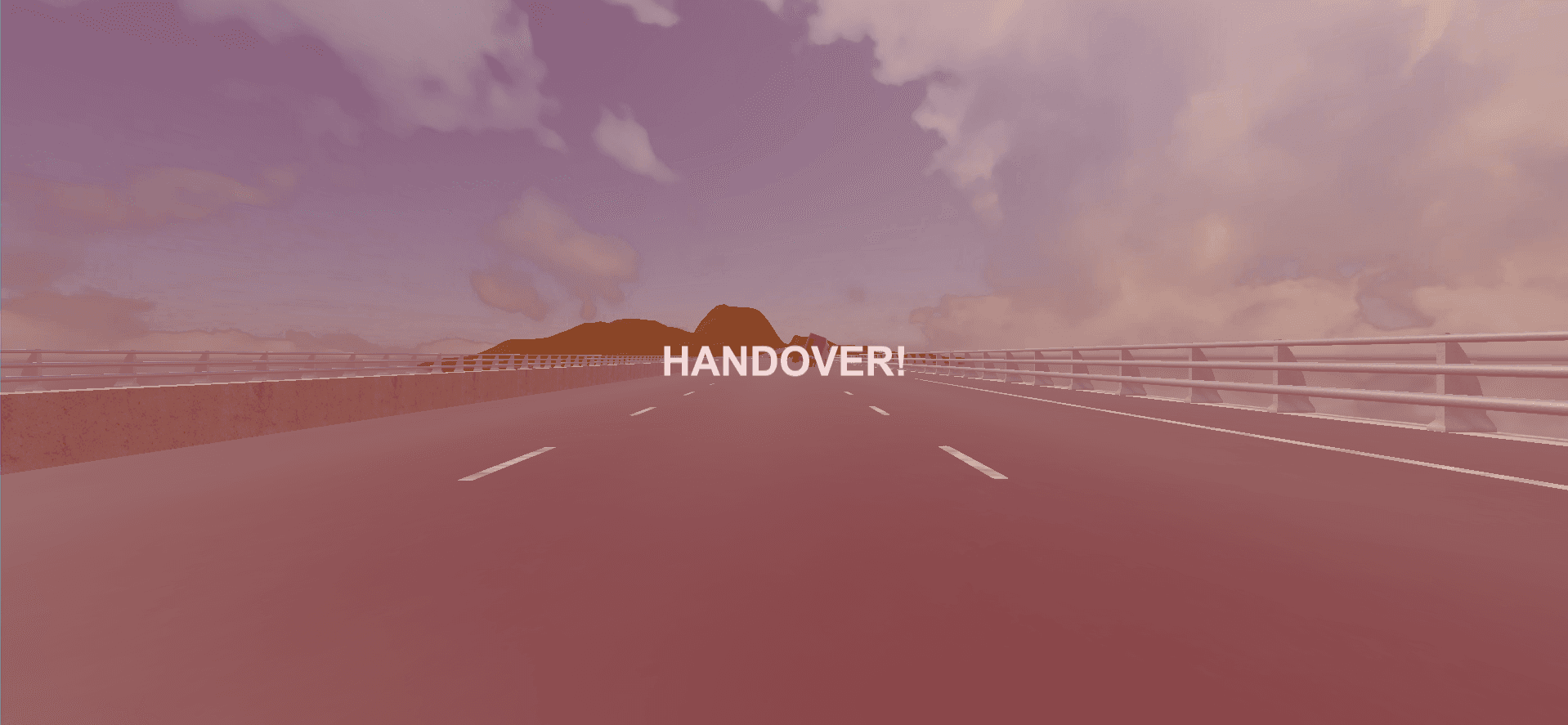

Fig 1. The handover alert scene: Once the incident take place ahead, the screen turns red to alert the participants of the handover

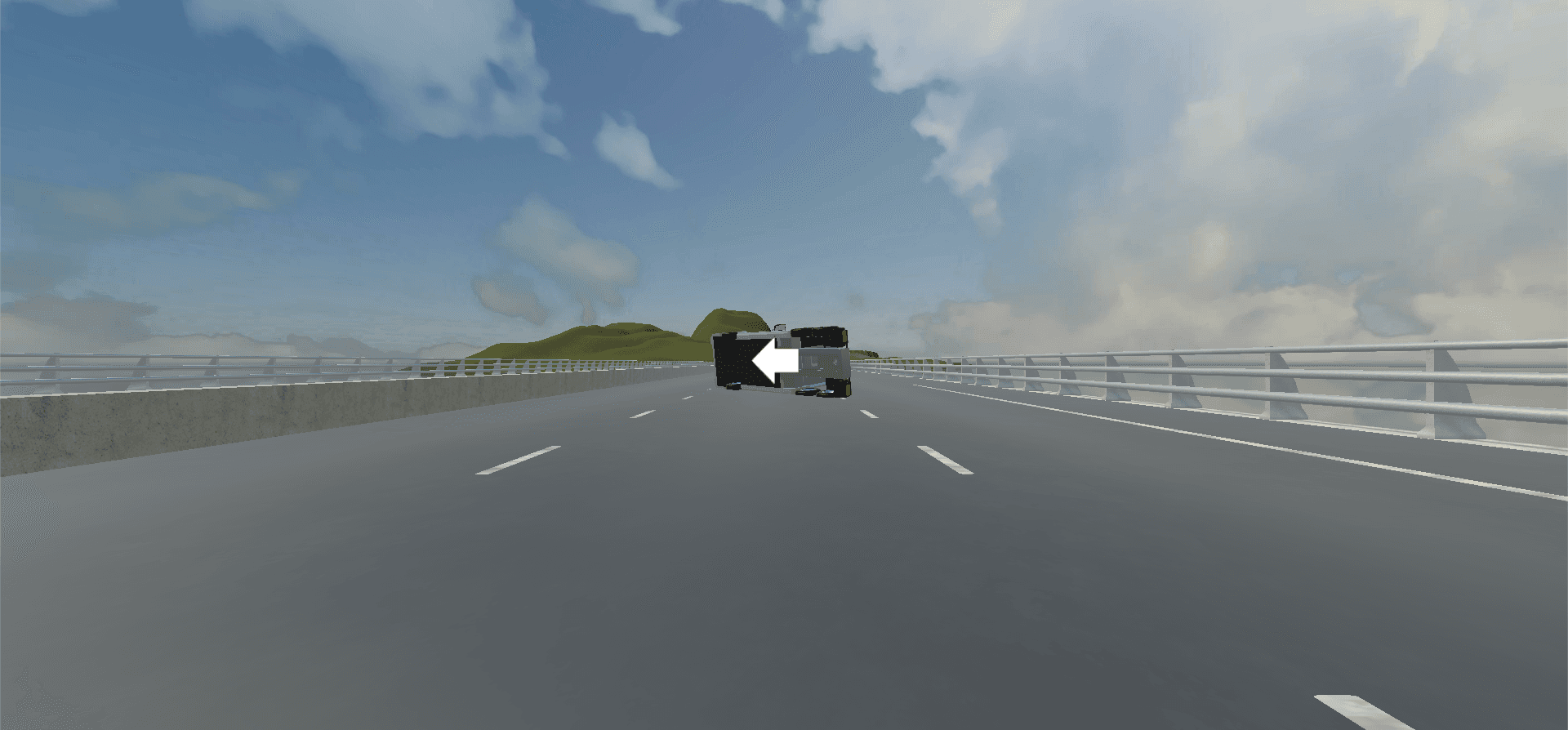

Fig 2. The response task: After the handover, the participants should press the corresponding arrow button on the steering wheel as soon as they identify the incident.

Measurements

There are two main metrics to evaluate our research:

Response Behavior: which is defined as the time spent from the handover occurs till the moment the driver pressed the corresponding arrow button. Additionally, to evaluate the driver's behavior after the handover, we kept track of the car trajectory and established a list of unsafe behavior including crashing into the accident car or hitting the guardrail.

Reading Performance: In our questionnaire there were several reading comprehension questions, we calculated the accuracy of those questions to know how well the participants understand the reading content displayed on the windshield in the auto-driving mode.

Results (Reading Performance)

Accuracy of Reading Comprehension Questions

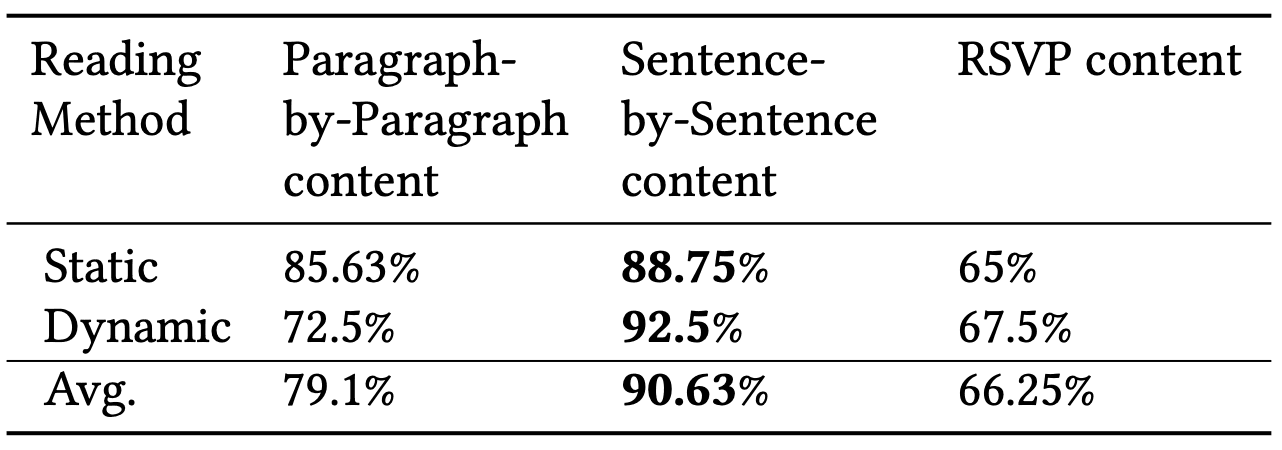

Based on the following tables, we can see that among the display methods, participants show higher comprehension when the content is displayed sentence-by-sentence with an average accuracy of 90.63%, which is significantly higher than the other two.

Display method's effects on comnprehension accuracy.

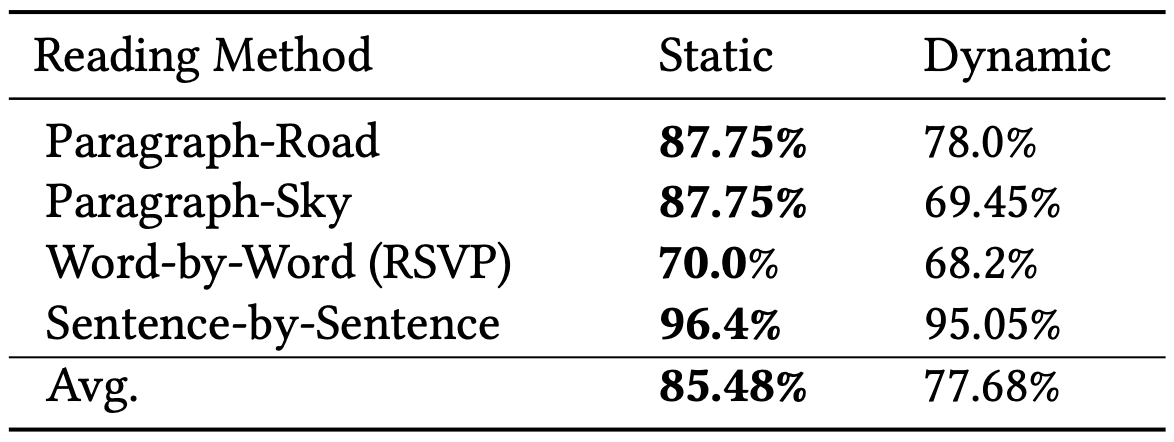

We have also discussed whether dynamic positioning influence the participants reading comprehension. According to the following table, static positioning of the reading zone results in an average accuracy of 85.48%, which is almost 8% higher than dynamic positioning of the reading zone. The result is understandable because moving text is hard to comprehend. However, we can see a significant difference between the static and dynamic content positioning in Paragraph-by-Paragraph content. The participants reported that when there were less content shown, even if they were shifting, they could easily track the content. However, when a long paragraph was displayed at a time, they couldn't focus on the text they were reading when shifting. Thus, the difference in accuracy in other three content display method isn't as significant as in the Paragraph-by-Paragraph content.

Text placement's effects on comnprehension accuracy.

Reading Comfort

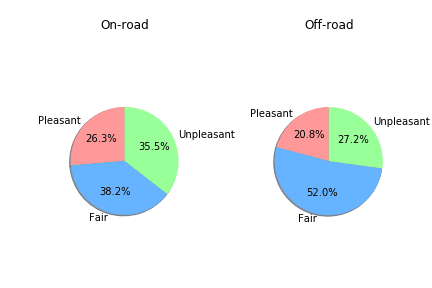

The Off-road positioning was specifically designed to increase reading comfort, because the complexity of the background on-road may effect reading comfort. However, only 20.8% of the participants enjoy this positioning. It turned out that comparing to the complexity of the background, participants still prefer to keep the road traffic in their sight.

On-Road/Off-Road's effects on reading comfort.

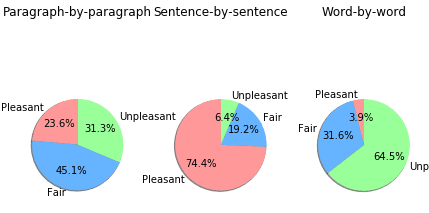

Moreover, In our results (see follwing figures), 74.4% of the participants perceived the content display method of Sentence-by-Sentence content as pleasant, while only 23.6% and 3.9% enjoyed reading paragraph-by-paragraph content and word-by-word content. This perfectly fits the result of the accuracy in reading comprehension questions, and proven a correlation between both metrics.

We have expected that content displayed paragraph-by-paragraph would lead to the best reading performance. However, the accuracy of displaying paragraph-by-paragraph is lower comparing to displaying sentence-by-sentence. Since displaying content paragraph-by-paragraph resembles our reading habit the most, we have suspected that readers can perfectly comprehend the content. Notwithstanding, the participants commented that, if showing too much content at a time, they often lost track when they look back to remind themselves of previous plots. This not only contributes to a lower accuracy, but is also the reason why most of the participants considered the reading experience fair but not pleasant.

Display method's effects on reading comfort.

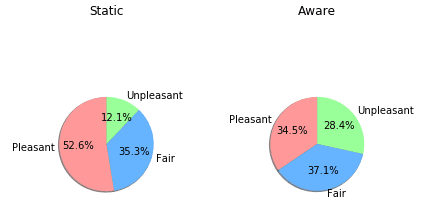

Static and dynamic reading zone positioning also influence reading comfort. In average, 52% of the participants perceived static positioning as pleasant, while, only 34.5% of them enjoy dynamic positioning. This also matches the explanation stated in accuracy of reading comprehension questions section.

Dynamic text placement's effects on reading comfort.

Reading Speed

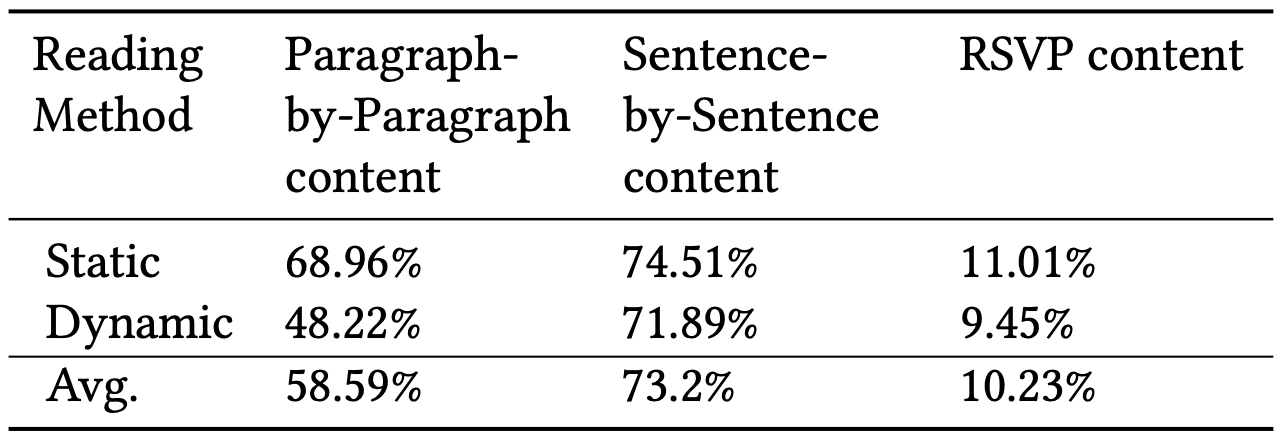

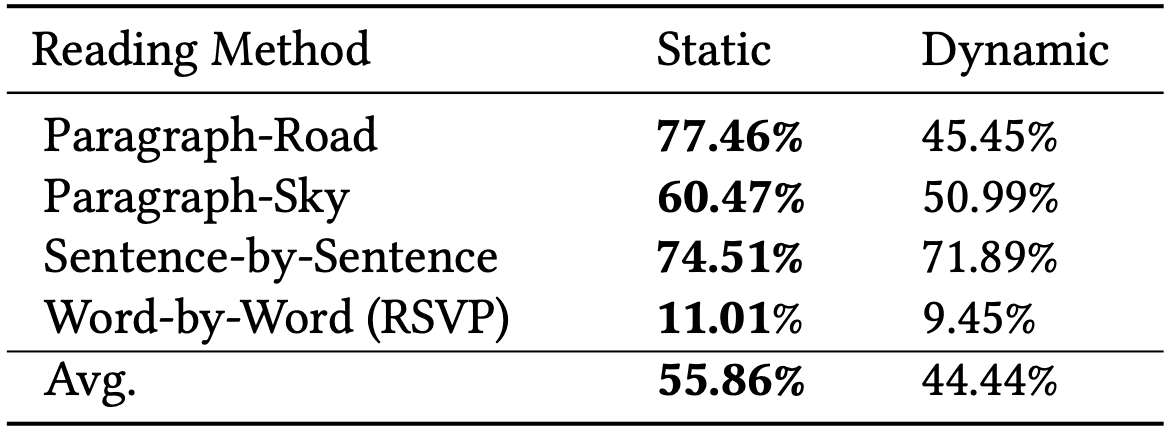

The eight reading passage are all of the same length. The reading speed percentage represents the percentage of the passage the participants have read during the experiment. The following table reports the participant's reading speed under different settings. The results corresponds to reading comfort that Sentence-by-Sentence content has the best reading performance, with RSVP content has the poorest. As for the influence on reading zone positioning, dynamic positioning performs slower reading speed which is also plausible because generally we have to pay more attention and time when reading moving text.

Display method's effects on reading speed.

Text placement's effects on reading speed.

Results (Response Behavior)

Successful Response Rate

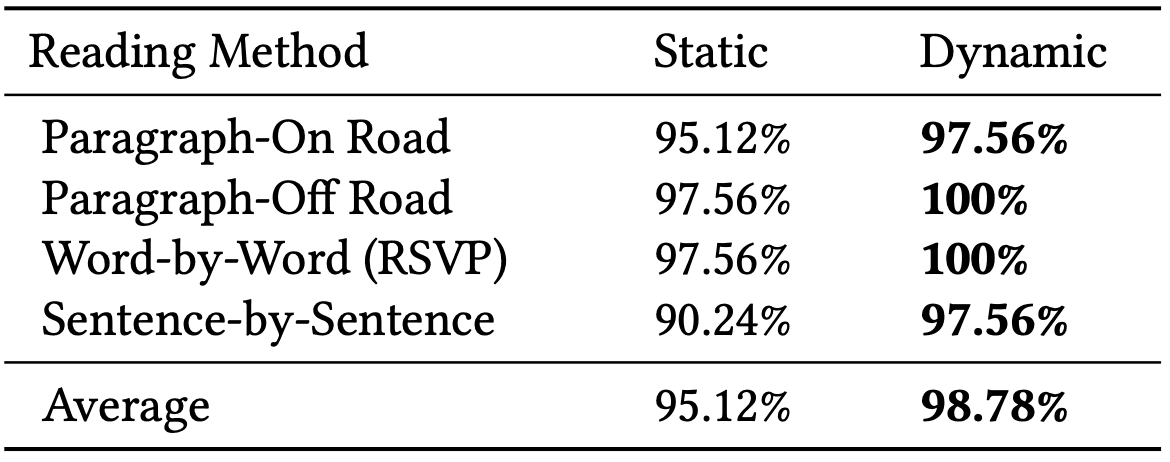

The rate of participants that successfully performed the response task is shown in the following table. In most of the trials, participants are able to successfully perform the correct response task before their vehicles crash, with success rates all exceeding 90%.

Still, we can observe that reading methods with dynamic positioning of reading zones generally have a higher success rate. This corresponds with the assumption that dynamic positioned texts boosts a safer handover.

Successful response rate of different reading methods.

Response Time

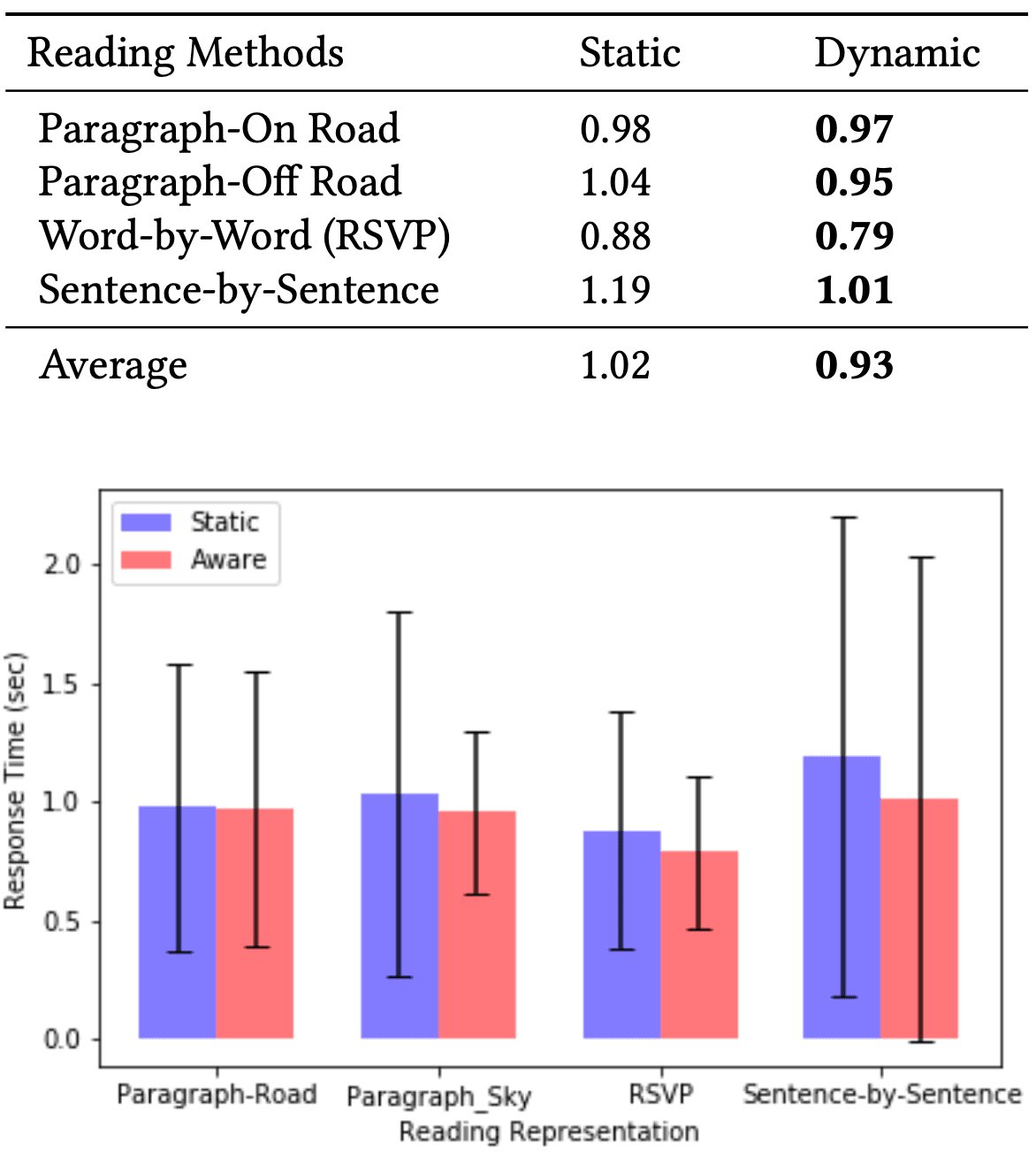

The following table/figure depicts the mean response time for each content display method. In some of the trials, the participant failed to press the correct button all the way until they crashed into the accident car. These failed trials will have response time of 3.2 seconds, since the drivers have approximately 3.2 seconds to react until their car crash into the vehicle(s) that caused that handover. However adding this "penalty response time" has caused the standard deviation to increase by quite a bit. It is worth noting that otherwise the response time are not that scattered.

Successful response rate of different reading methods (in Seconds).

Consistent with the trend in Successful Response Rate, average response time decreased by almost 9 percent when dynamic reading zone positioning is used.

Across the content display methods, Word-by-Word (RSVP) content has the lowest overall response time. In fact, the best performing reading method has over 30% shorter response time than the worst performing method. Aside from the theorized effect of limiting eye gaze. There are other factors that could contribute to this outcome. Among the participants' feedback, one prevalent response is how difficult reading in RSVP is to them. It is evident that RSVP is not a very common display method, and for many participants, this is the first time they ever try reading on one. Because of this, many participants anticipated RSVP to be a difficult task, and ends up lowering the RSVP update rate far below average reading speed. The unusually low word count of RSVP display method is an evidence of such effect. At such a low input rate, the reading task became too undemanding. The drivers could then devote more attention on the road condition in between the change of words, hence the lowest response time.

Sentence-by-Sentence contents require the longest response time. Coincidently, it is also the display method that enjoys the highest reading comfort, scoring best in all of our metrics. Observing both of these trends, we have theorized that the high reading comfort of the sentence-by-sentence display would prompt the driver into investing too much in the reading task. In fact, it is reasonable to conclude that, the over immersion in the reading experience could make the handover transition slower and more sluggish.

Conclusion and Disscussions

This post is getting a little bit too long, so for those who are interested in the conclusion that we draw and the further disscussions, please take a look at themanuscriptthat we had came up with. The paper also contains a lot of detail about the experiment processes that I chose to omit here.

Reflections

This project is the first "formal" research that I did. And looking back on it now, it obviously left a lot to be desired. However, it gave me a hands on experience of the whole process, from formulating the problem, designing the experiment to writing the manuscript. I learned a lot from it, and I enjoyed every second of it!
